IoT Data Acquisition & Integration

Data acquisition and integration are foundational components of the Internet of Things (IoT), enabling devices to collect, process, and utilize information from the physical world efficiently. Our IoT solutions span edge sensing, signal conditioning, embedded processing, and cloud-ready integration pipelines for industrial and commercial deployments.

1. IoT Data Acquisition

Data acquisition in IoT is the process of collecting data from sensors, devices, and embedded systems, converting it into digital formats, and preparing it for storage or immediate analysis.

Sensors

Capture physical parameters: temperature, humidity, pressure, vibration, motion, and electrical characteristics.

Signal Conditioning

Filters and prepares sensor outputs (analog or digital) for accurate, noise-free measurement before processing.

Embedded Systems

Process sensor data, implement acquisition logic, manage communication interfaces, and handle local storage.

Data Logging & Storage

Onboard memory, local servers, or cloud storage for collected datasets with time-series optimized databases.

Communication Interfaces
Wired:
Modbus RS485 RS232 CAN bus
Wireless:
Wi-Fi Bluetooth

2. IoT Data Integration

Data integration combines heterogeneous data from multiple IoT devices and external systems into a unified, coherent view for actionable insights.

Challenges
  • Heterogeneity — Diverse protocols, formats, and standards across devices
  • Scalability — High-velocity, high-volume data streams at massive scale
  • Semantic Interoperability — Consistent meaning across heterogeneous systems
  • Real-Time Latency — Critical in industrial automation and healthcare
  • Security & Privacy — Auth, encryption, access control, GDPR/HIPAA
Integration Strategies
  • IoT Platforms — AWS IoT Core, Azure IoT Hub, Google Cloud IoT
  • Standard Protocols — MQTT, CoAP, OPC UA for reliable communication
  • Edge Computing — Preprocessing at source to reduce network load
  • iPaaS Integration — Connect IoT data with ERP, CRM, MES, WMS, BI
  • Data Governance — Standardized formats, quality metrics, central storage

3. Typical Data Workflow

1
Data Capture — Sensors & IoT nodes collect information from the physical environment
2
Local Processing — Edge devices preprocess and filter data to reduce transmission volume
3
Transmission — Secure sending using MQTT, CoAP, HTTP/REST, or our MQTT-over-UDP protocol
4
Central Integration — Unified data ingested into cloud platforms or centralized on-premise servers
5
Analysis & Visualization — Dashboards, predictive analytics, and machine learning-driven insights

4. Industry Use Cases

Smart Manufacturing / Industry 4.0 Smart Cities Healthcare & Remote Monitoring Supply Chain & Logistics Energy & Facilities Management
  • Integrating PLCs, sensors, and IoT devices with MES for real-time monitoring and predictive maintenance
  • Air quality monitoring, traffic optimization, and urban resource management via smart city platforms
  • Wearable IoT devices feeding into EHR systems for continuous remote patient monitoring
  • Fleet tracking, asset monitoring, and automated inventory management for logistics
  • Smart meters and sensors aggregated for energy optimization and facilities management
  • QA inspection, process monitoring, and predictive maintenance for manufacturing

5. Best Practices

  • Predefine Data Standards — Consistent formats, units, and schemas across all devices
  • Scalable Storage — Time-series databases for rapid, high-frequency sensor data
  • Robust Security — End-to-end encryption, access control, and anomaly detection
  • Edge + Cloud Hybrid — Minimize latency while maintaining centralized oversight
  • Semantic Approaches — Model-driven standards enhance interoperability across ecosystems
  • Governance Framework — Quality metrics, audit trails, and centralized data catalogues

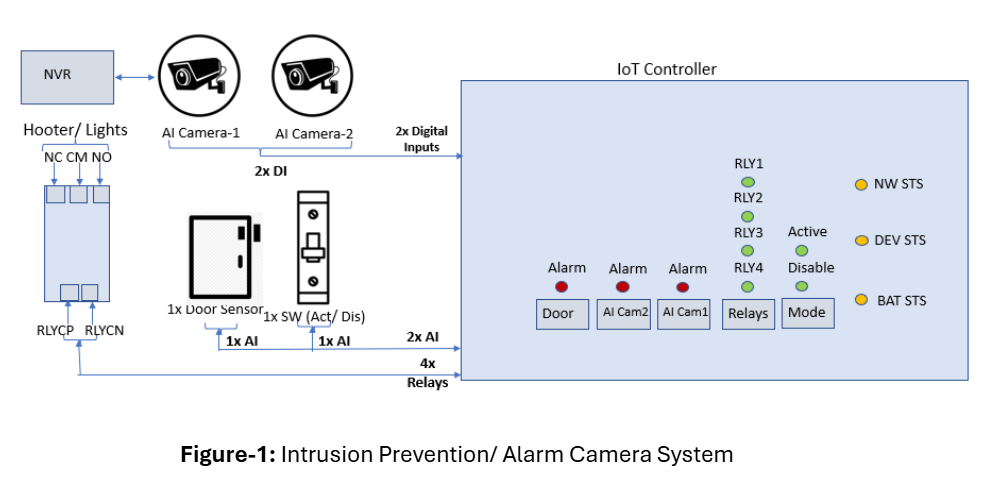

Intrusion Prevention / Alarm Camera System

Next-generation security powered by Intrusion Prevention/Alarm system using AI Camera. Our system uses advanced AI Camera recognition to detect unauthorized activity and trigger real-time alerts via Digital Output (DO) signals. The actual camera feed can still go to camera's dedicated NVR system for video recording. Only the Digital Output (DO) of the AI camera is used for Intrusion detection. Maximum 2 AI Cameras can be used with this system. Additionally, a door open/close sensor can be used to detect unauthorized openings of door or cabins.

Use Cases:

Ideal for Warehouses, Retail Spaces, Jewel shops, and Residential Areas to monitor unauthorised human activities and trigger Relay Controls, Hooter alarm and AC lighting loads.

Key Features:
  • 2x AI cameras trigger alarms via Digital Input (DI)
  • 1x Door open/close sensor connected via Analog Current Input (AI)
  • 1x Manual switch to activate/disable the system via AI
  • All AI inputs connected with 1K series resistor
  • 4x Relay control signals for external devices
  • DIN Rail mount relays suitable for Hooter alarm and AC lighting (10A–30A loads)
  • Relays have screw mount NC-COM-NO connections for easy wiring
  • For >30A loads, external Power Contactors can be used
  • WiFi/Ethernet connectivity to send smart alerts via SMS, WhatsApp, or Email
  • Low false positive rate for reliable alerts
  • 4x Green LEDs display each Relay On/Off status
  • 2x Green LEDs display Active/Disabled mode
Intrusion Prevention System

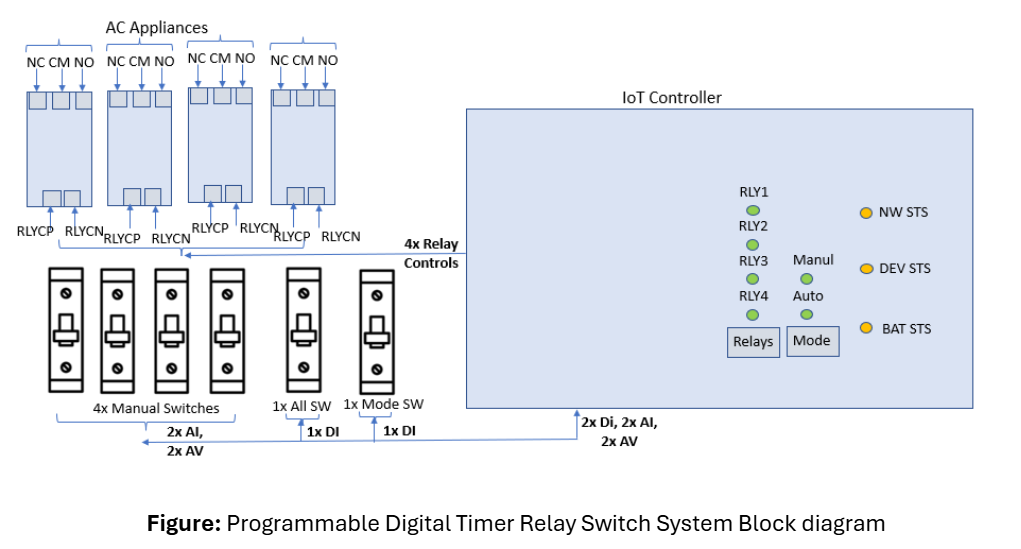

Smart Digital Timer Relay Switching System

Automate switching On/Off of your AC appliances like electrical systems, heavy equipment and lighting loads with our intelligent Digital Timer Relay Switch system. Schedule and manage AC appliances to maximize energy efficiency and operational control. Just plug in your appliance, set the program and let the system handle the rest.

Use Cases:

Ideal for HVAC systems, Lighting controls, Industrial equipment, Geysers/Water Heaters, Air Conditioners, Water Pumps, Washing Machines, Electric Cookers, Common Area Lighting, Street Lights, Garden Lights, Glow Sign Boards, Wet Grinders, Water Coolers, Aquariums and more.

Key Features:
  • 4× Relay switches (10–30A) for HVAC systems
  • DIN-Rail mounted with screw terminals for easy wiring
  • Supports >30A loads using Power Contactors
  • PC scheduling interface: 8 On/Off programs per day, 7 days a week
  • Manual/Automatic mode control via dedicated switch
  • Manual override for all relays using 5 dedicated switches
  • LED indicators: 4 for relay status, 2 for Manual/Automatic mode
Smart Digital Timer Relay System
